Pressure Vessel Shell Forging
Pressure Vessel Shell Forging
Contact Us Now >
Download
Product Overview
Pressure Vessel Shell Forging is intended for cylindrical duty where the part must carry load through its wall section, bore, and end faces. For this category, buyers usually focus on wall-thickness consistency, bore straightness potential, heat-treatment response, and the availability of adequate stock for boring, facing, and sealing-area machining.

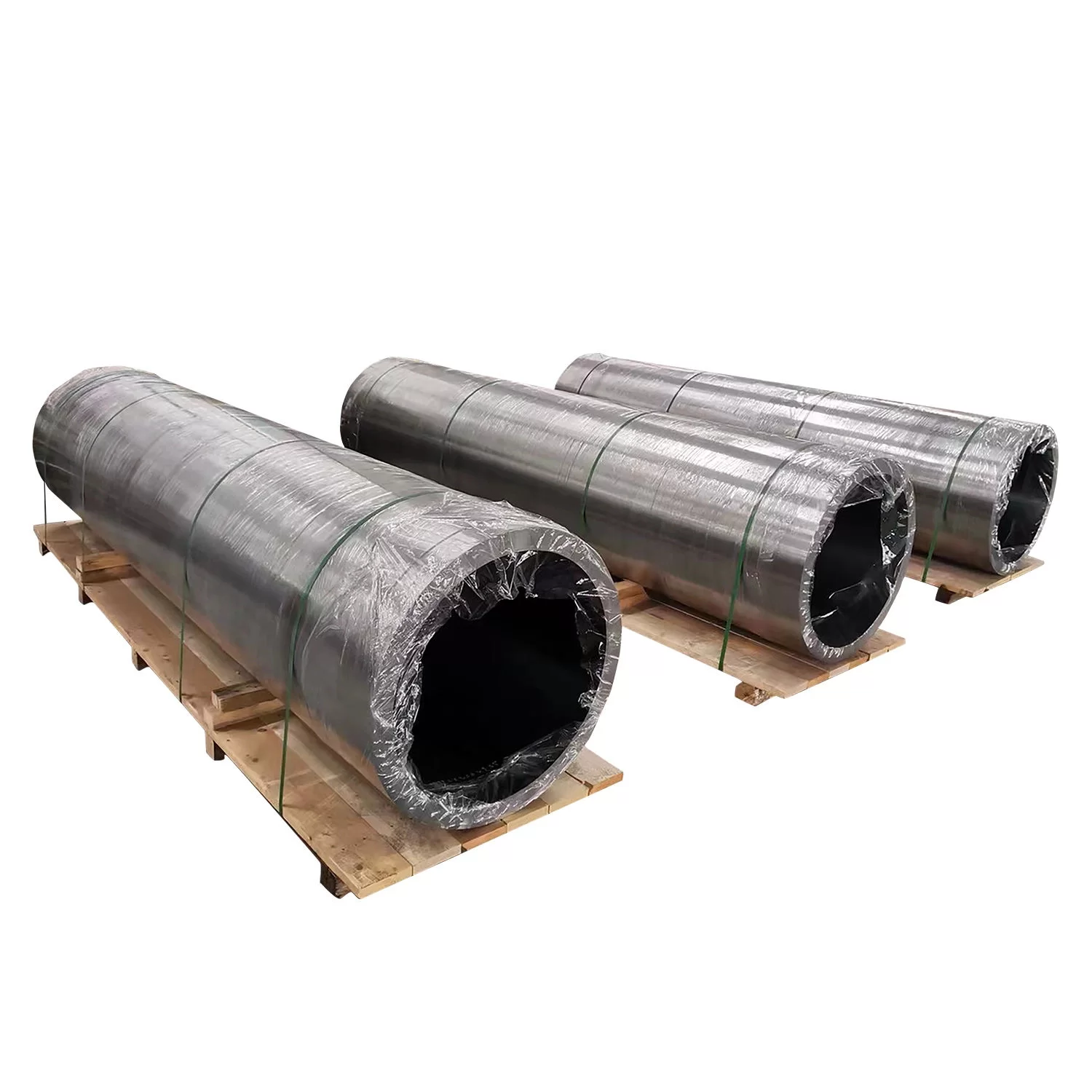

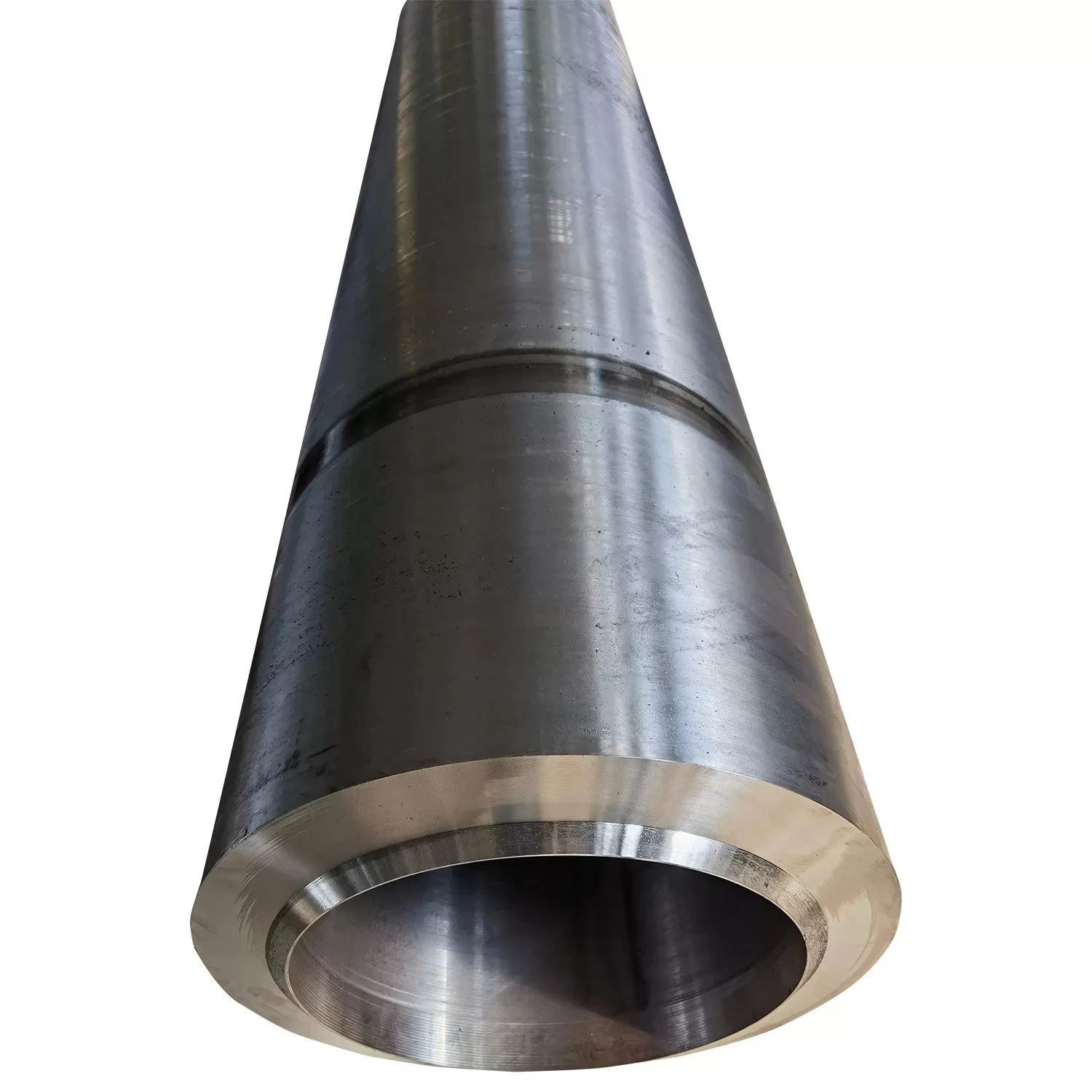

Pressure vessel shell forgings are intended for heavy cylindrical sections where forged structure, pressure reliability, and documentation control are important. They are particularly relevant in projects that want a higher-integrity alternative to fabricated cylindrical sections in critical zones.
Detailed Parameters
Product Code | 13002 |
Typical Materials | A105, LF2, A182 F11/F22/F91/F92, stainless steel, duplex and vessel-quality grades |
Typical Size Range | OD, ID, wall thickness, length, and bore straightness arranged according to cylinder or sleeve function |
Supply Condition | As forged, heat treated, rough machined, semi-finished, or finish-machined according to project scope |
Machining Scope | OD/ID/faces, boring, counterbores, shoulders, sealing areas, and dimensional rough machining |
Inspection Options | UT, MT/PT where applicable, PMI, hardness, mechanical testing, dimensional inspection, and third-party witness |
Documentation | EN 10204 3.1, heat-treatment record, dimensional report, NDT report, marking list, and project-specific dossier |
Typical Applications | Pressure vessel shells; Reinforced cylindrical vessel parts; High-integrity process equipment; Project shell sections |
Commercial Note | Dimensions, heat treatment, machining allowance, and inspection scope can be arranged according to drawing and project specification. |
Key Advantages
Wall-Section Reliability — Forged cylindrical sections offer better continuity and pressure confidence than many fabricated alternatives.
Bore and Face Machining Support — The supply condition can be matched to boring, honing, facing, and sealing-surface machining routes.
Load-Bearing Stability — These parts are intended for service where wall thickness and cylindrical integrity directly influence equipment safety.
Documentation and NDT Support — UT, mechanical testing, hardness checks, and EN 10204 3.1 documents can be supplied according to project scope.
Flexible Hollow Geometry — Custom bores, wall sections, shoulders, and end forms can be arranged to drawing for sleeves, shells, and hydraulic parts.
Typical Applications
• Pressure vessel shells
• Reinforced cylindrical vessel parts
• High-integrity process equipment
• Project shell sections
Supply Scope and Inspection
Pressure Vessel Shell Forging can be supplied as a forging blank, heat-treated forging, rough-machined forging, or semi-finished part according to the customer’s process route. Where the project requires closer dimensional control, additional OD/ID/facing, journal, bore, or drilling work can be incorporated before shipment.
For inspection-sensitive orders, Yongxinsheng can coordinate ultrasonic testing, MT/PT where applicable, PMI, hardness checks, mechanical testing, marking, EN 10204 3.1 documentation, and third-party witness arrangements. This makes the product suitable not only for general industrial procurement but also for project-based orders with stricter quality-document requirements.
