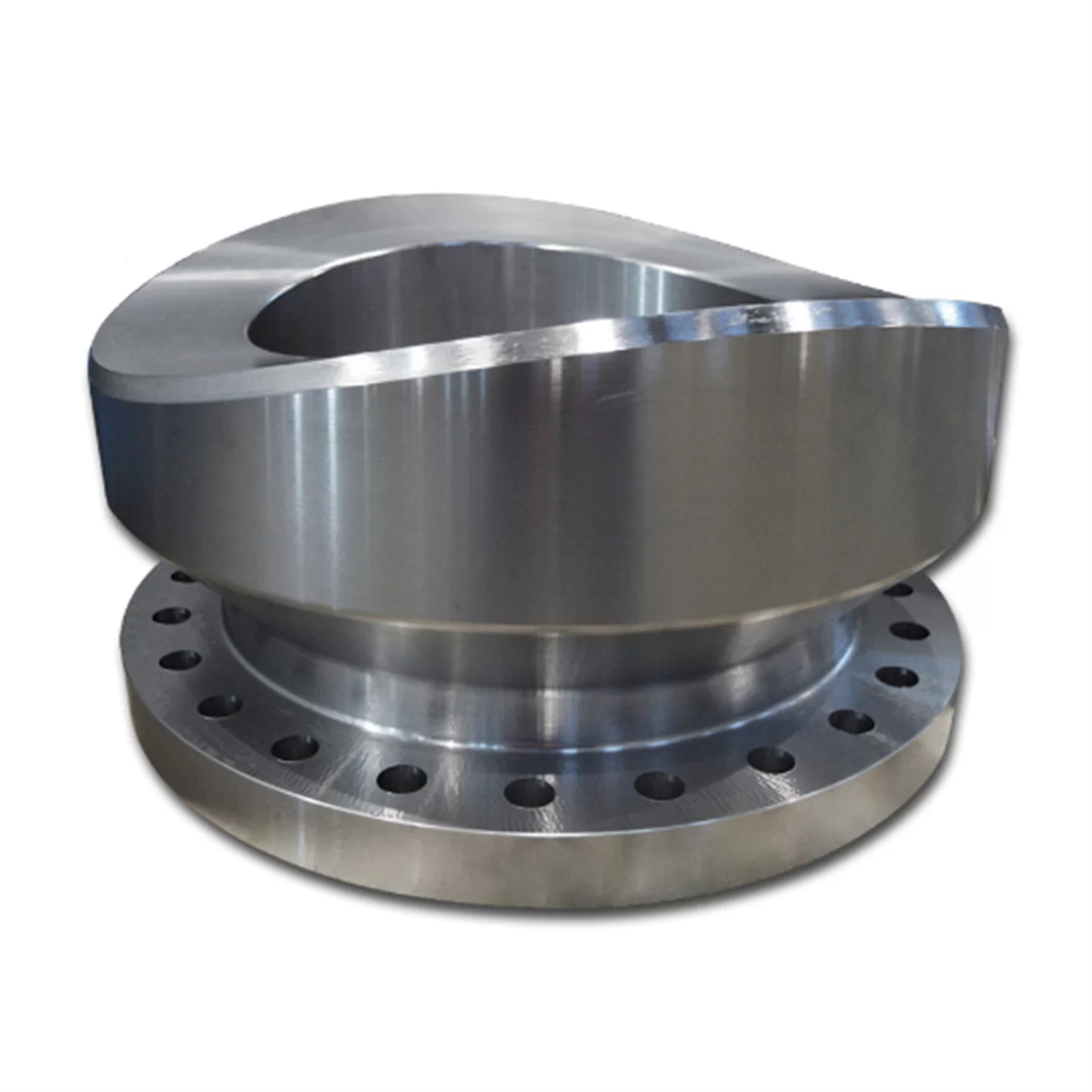

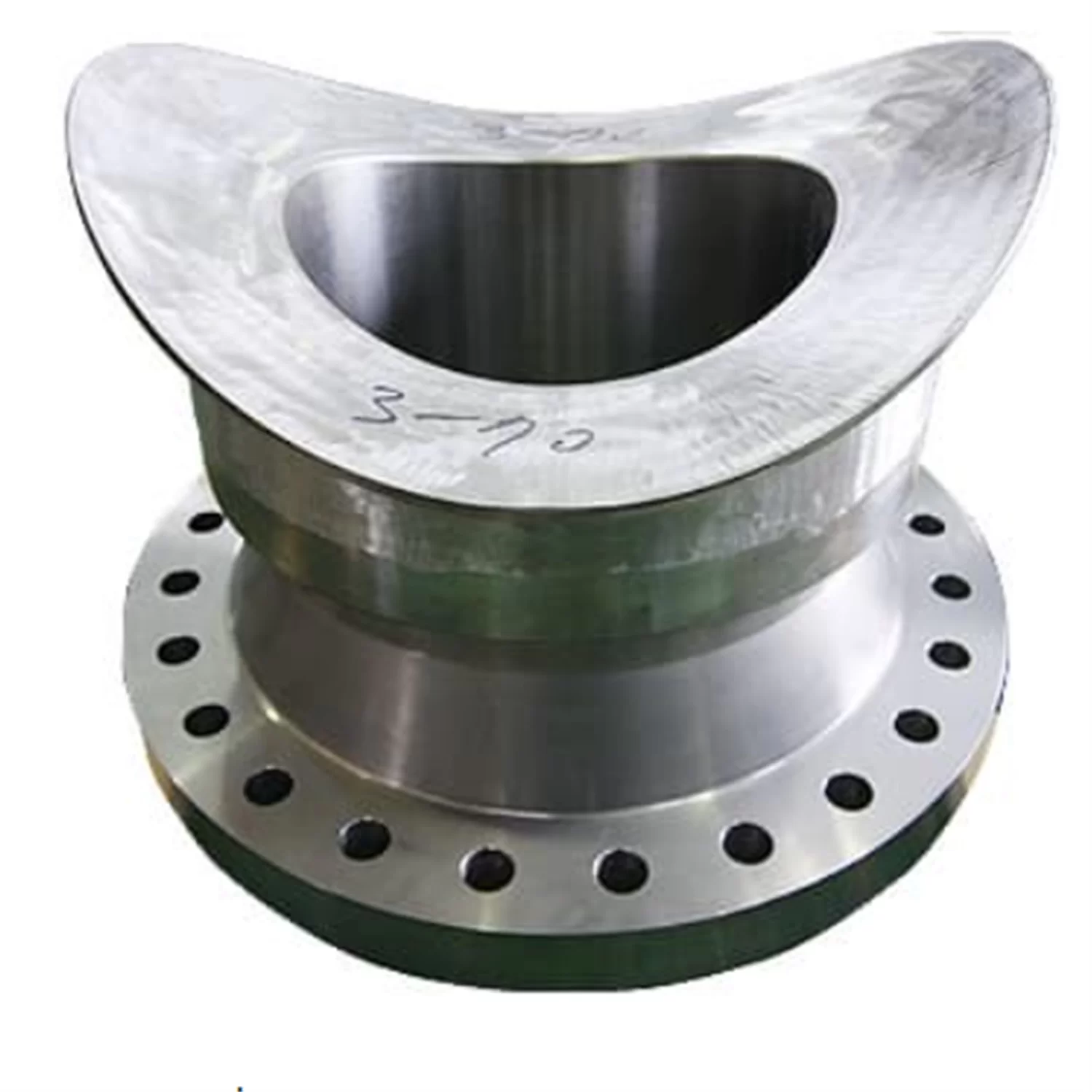

Heavy-Wall Nozzle Neck Forging
Heavy-Wall Nozzle Neck Forging
Contact Us Now >
Download
Product Overview
Heavy-Wall Nozzle Neck Forging belongs to a family of forged tubular connections used in pressure equipment and heavy piping interfaces. In practical projects, purchasing decisions are normally driven by wall-thickness reliability, transition geometry, weld-end allowance, and the ability to control deformation during heat treatment and rough machining.
This product is intended for more demanding nozzle positions with thicker walls, higher operating loads, or larger sizes. The forging route is selected to support better material continuity through the neck zone and to reduce the risk associated with heavy machining and subsequent welding into the vessel body.
Detailed Parameters
Product Code | 11004 |
Typical Materials | A105, A350 LF2, A182 F11/F22/F91/F92, stainless steel, duplex, and special vessel grades |
Typical Size Range | OD, ID, length, wall thickness, and transition geometry arranged according to connection design and machining allowance |
Supply Condition | As forged, heat treated, rough machined, semi-finished, or finish-machined according to project scope |
Machining Scope | OD/ID/faces, weld-end stock, branch interface machining, bevels, and transition profile machining |
Inspection Options | UT, MT/PT where applicable, PMI, hardness, mechanical testing, dimensional inspection, and third-party witness |
Documentation | EN 10204 3.1, heat-treatment record, dimensional report, NDT report, marking list, and project-specific dossier |
Typical Applications | Large or thick nozzle connections; Refinery and process vessels; High-load branch zones; Special pressure-equipment nozzles |
Commercial Note | Dimensions, heat treatment, machining allowance, and inspection scope can be arranged according to drawing and project specification. |
Key Advantages
Heavy-Wall Integrity — The forged wall section helps improve structural reliability in transition zones, branch connections, and pressure-retaining parts.
Controlled Machining Allowance — Allowance is arranged for bevels, faces, bores, and weld preparation so the customer can finish the connection without sacrificing sound material.
Better Weld Integration — Proper forged preforms support improved fit-up and more stable welding performance in vessel and piping assemblies.
Inspection Readiness — These parts can be supplied with UT, PMI, hardness checks, and project documentation suited to pressure-equipment work.
Drawing-Based Adaptability — Straight sections, neck contours, and transition profiles can be arranged to match project geometry rather than forcing a standard layout.
Typical Applications
• Large or thick nozzle connections
• Refinery and process vessels
• High-load branch zones
• Special pressure-equipment nozzles
Supply Scope and Inspection
Heavy-Wall Nozzle Neck Forging can be supplied as a forging blank, heat-treated forging, rough-machined forging, or semi-finished part according to the customer’s process route. Where the project requires closer dimensional control, additional OD/ID/facing, journal, bore, or drilling work can be incorporated before shipment.
For inspection-sensitive orders, Yongxinsheng can coordinate ultrasonic testing, MT/PT where applicable, PMI, hardness checks, mechanical testing, marking, EN 10204 3.1 documentation, and third-party witness arrangements. This makes the product suitable not only for general industrial procurement but also for project-based orders with stricter quality-document requirements.
