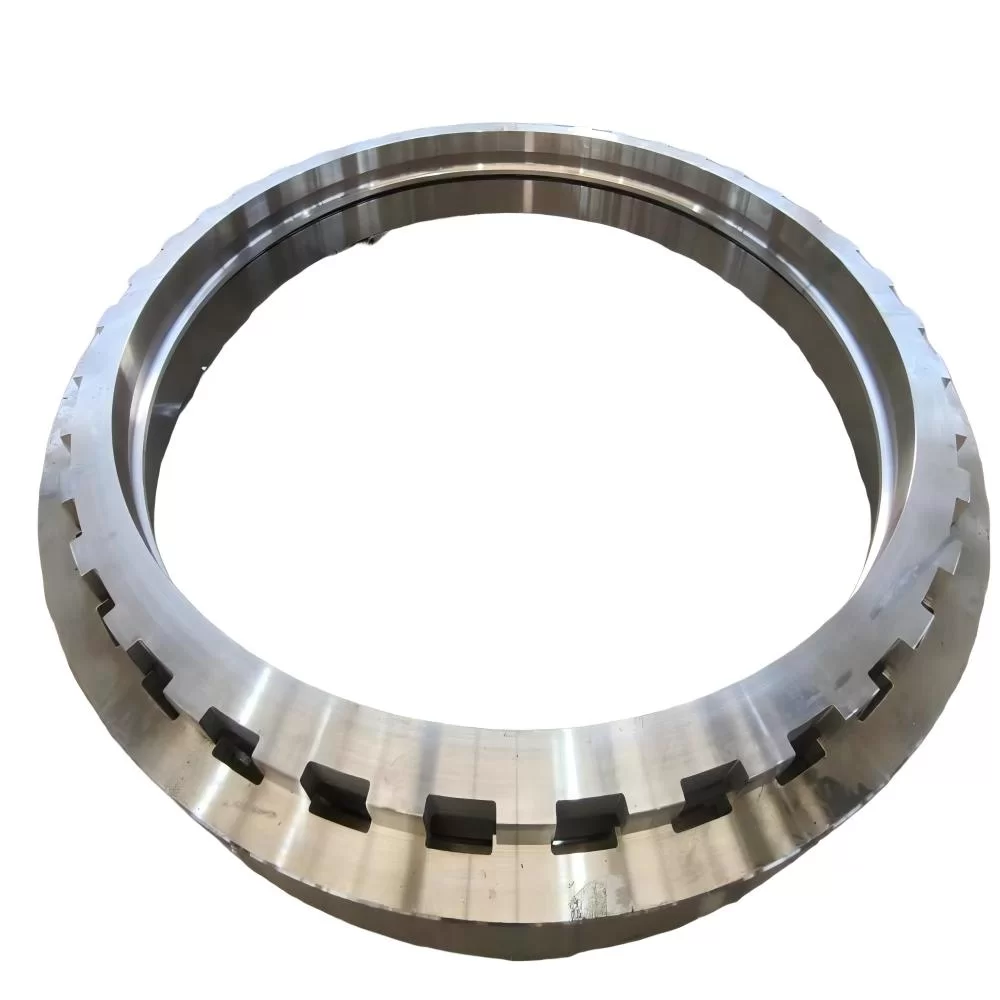

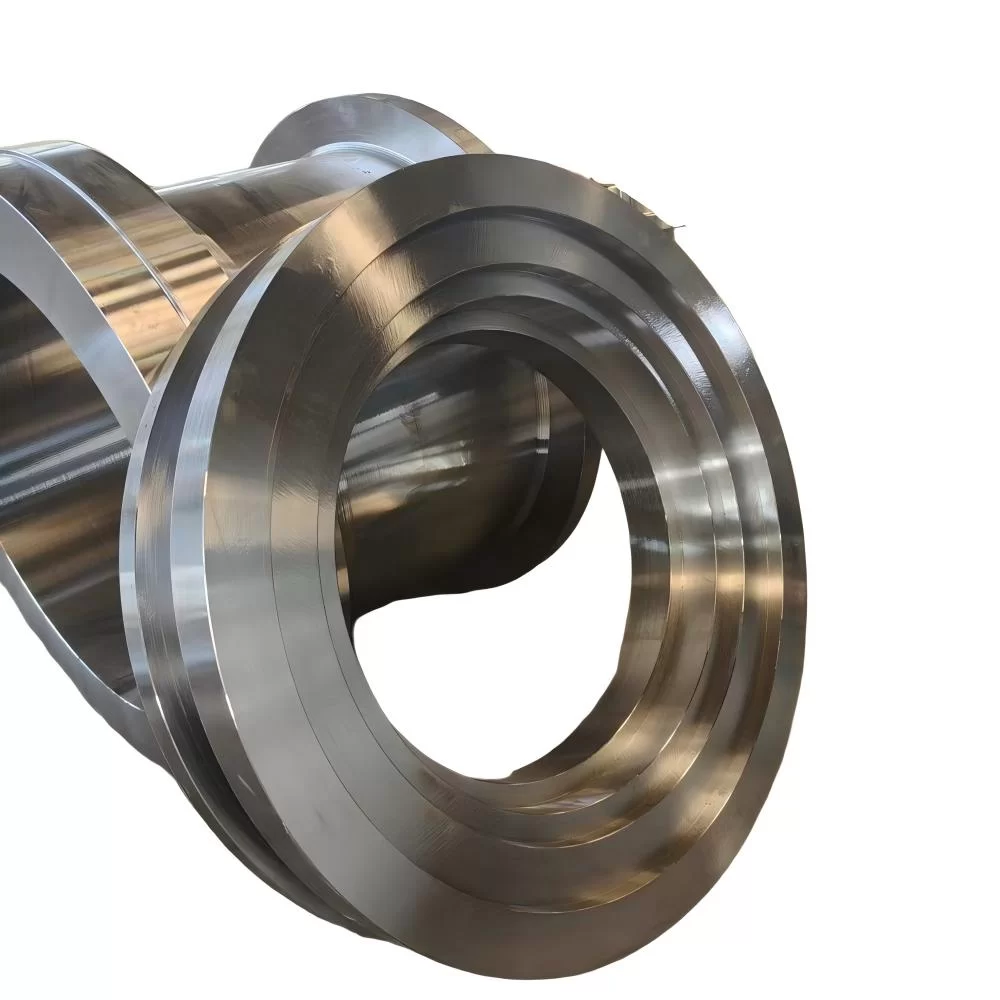

Drawing-Based Forged Ring
Drawing-Based Forged Ring
Contact Us Now >
Download
Product Overview
Drawing-Based Forged Ring is positioned within custom forged & machined rings and is typically selected when buyers need a forged ring product rather than a plate-cut or fabricated circular part. This type of component is usually evaluated by grain flow continuity, ring geometry stability, heat-treatment compatibility, and the amount of machining stock required for the final finished dimensions.
This option is intended for non-standard circular parts that cannot be selected from a generic range. It is especially useful when the project involves special wall sections, unusual profile shapes, off-standard bores, or machining datums that must be considered during forging design.
Detailed Parameters
Product Code | 10007 |
Typical Materials | Carbon steel, alloy steel, stainless steel, and project-specific grades |
Typical Size Range | OD, ID, wall thickness, and machining allowance arranged according to ring rolling route and final machining scope |
Supply Condition | As forged, heat treated, rough machined, semi-finished, or finish-machined according to project scope |
Machining Scope | OD/ID/faces, groove preparation, drilling, turning, and drawing-based machining if required |
Inspection Options | UT, MT/PT where applicable, PMI, hardness, mechanical testing, dimensional inspection, and third-party witness |
Documentation | EN 10204 3.1, heat-treatment record, dimensional report, NDT report, marking list, and project-specific dossier |
Typical Applications | Non-standard ring parts; Custom circular forgings; Special equipment rings; Machined-to-drawing ring projects |
Commercial Note | Dimensions, heat treatment, machining allowance, and inspection scope can be arranged according to drawing and project specification. |
Key Advantages
Stable Ring Geometry — The forging and rolling route is selected to maintain circularity potential and provide a reliable base for subsequent turning, drilling, or tooth cutting.
Forged Grain Flow — A forged ring structure offers better material continuity than fabricated circular parts and improves confidence in highly loaded service zones.
Machining Efficiency — Stock is distributed where it is needed for OD, ID, and face machining, helping the customer reduce unnecessary material removal.
Heat-Treatment Compatibility — The product is planned for stable response through normalizing, quenching and tempering, or project-specified heat-treatment routes.
Project Flexibility — Material grade, ring section, rough machining, and inspection scope can be arranged according to drawing and end use.
Typical Applications
• Non-standard ring parts
• Custom circular forgings
• Special equipment rings
• Machined-to-drawing ring projects
Supply Scope and Inspection
Drawing-Based Forged Ring can be supplied as a forging blank, heat-treated forging, rough-machined forging, or semi-finished part according to the customer’s process route. Where the project requires closer dimensional control, additional OD/ID/facing, journal, bore, or drilling work can be incorporated before shipment.
For inspection-sensitive orders, Yongxinsheng can coordinate ultrasonic testing, MT/PT where applicable, PMI, hardness checks, mechanical testing, marking, EN 10204 3.1 documentation, and third-party witness arrangements. This makes the product suitable not only for general industrial procurement but also for project-based orders with stricter quality-document requirements.
