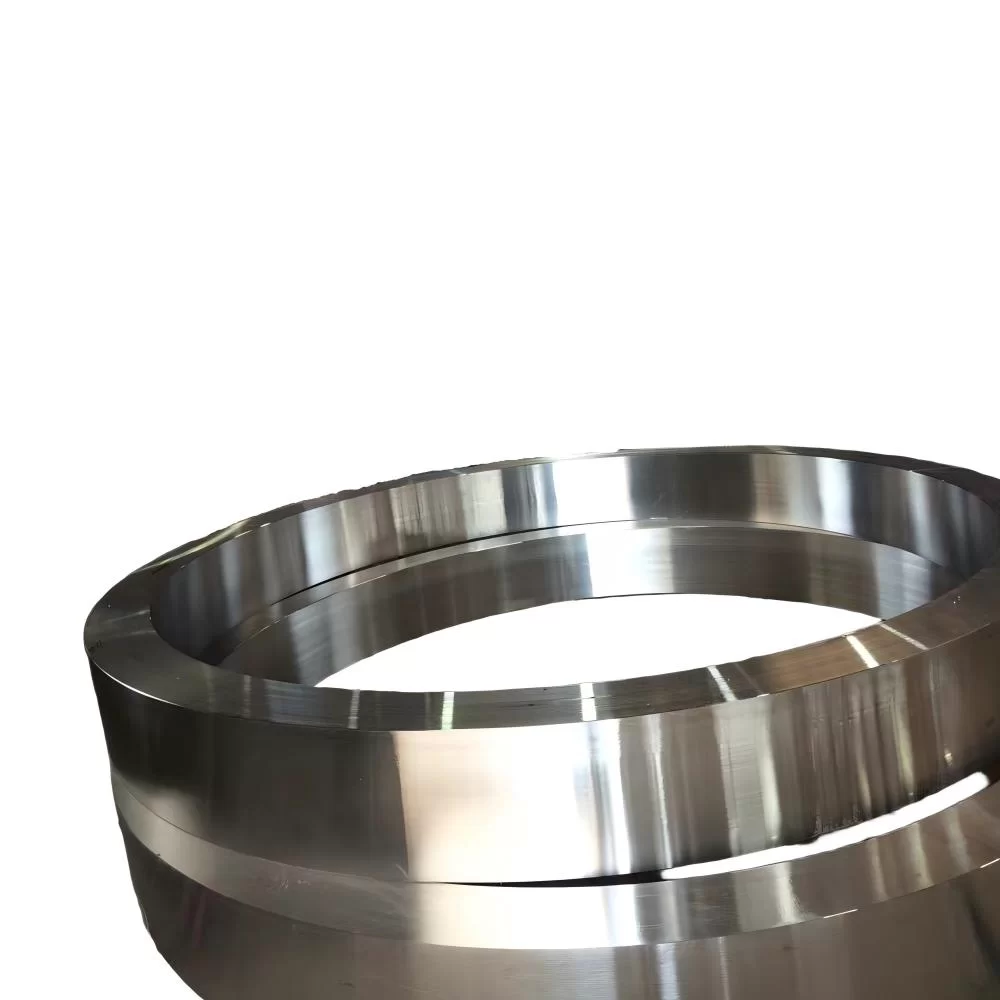

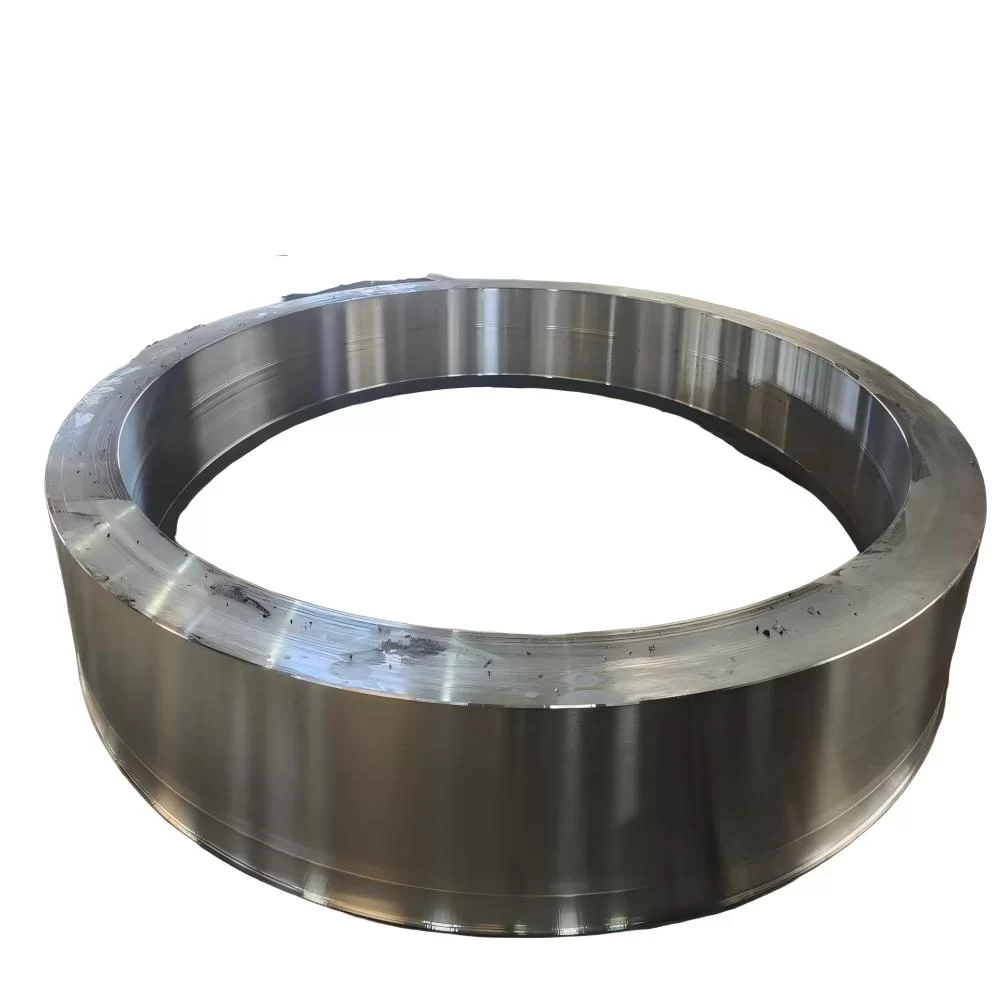

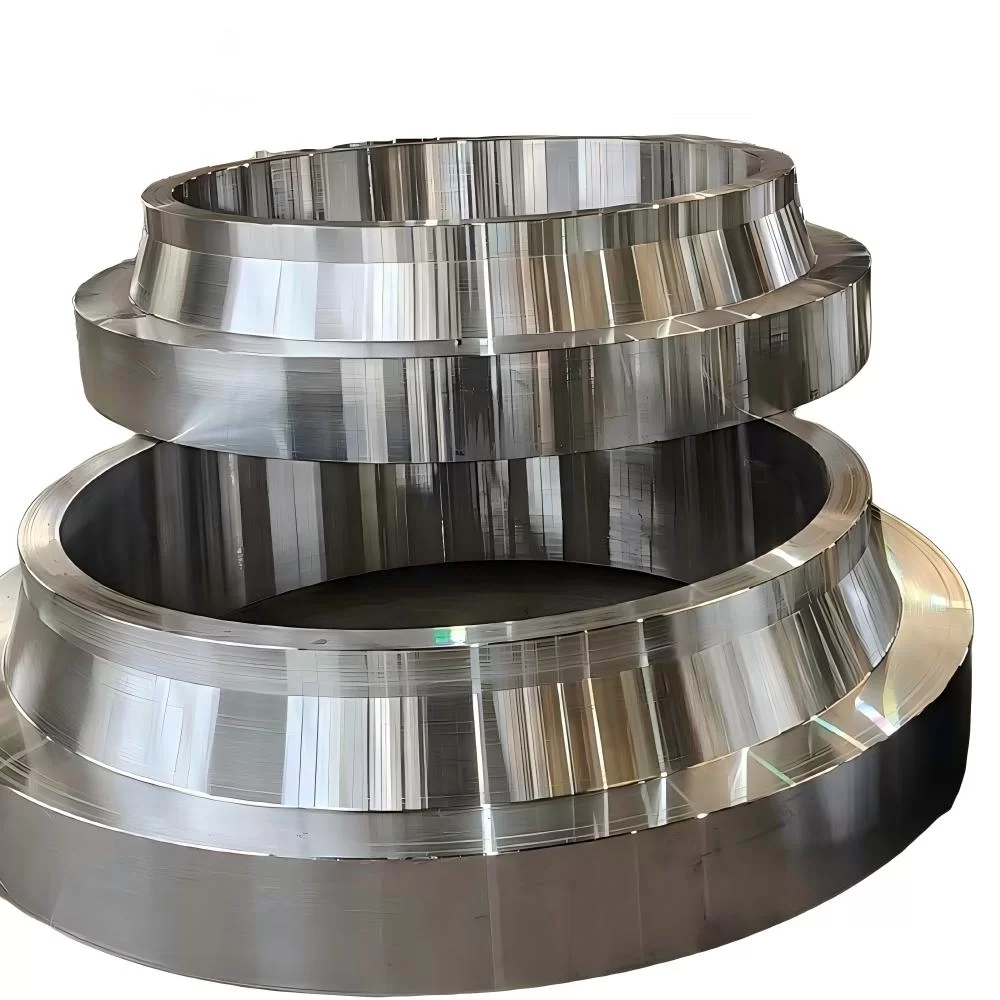

Pressure Vessel Ring Forging
Pressure Vessel Ring Forging
Contact Us Now >
Download
Product Overview
Pressure Vessel Ring Forging is positioned within rolled seamless rings and is typically selected when buyers need a forged ring product rather than a plate-cut or fabricated circular part. This type of component is usually evaluated by grain flow continuity, ring geometry stability, heat-treatment compatibility, and the amount of machining stock required for the final finished dimensions.
This forging is typically used where circular vessel parts require higher reliability than cut plate or fabricated rings. Customers usually focus on section soundness, wall uniformity, weld preparation allowance, and documentation support because the ring may become part of pressure-retaining equipment.
Detailed Parameters
Product Code | 10004 |
Typical Materials | A105, LF2, A350, A182 F11/F22/F91/F92, stainless and alloy grades to project specification |
Typical Size Range | OD, ID, wall thickness, and machining allowance arranged according to ring rolling route and final machining scope |
Supply Condition | As forged, heat treated, rough machined, semi-finished, or finish-machined according to project scope |
Machining Scope | OD/ID/faces, groove preparation, drilling, turning, and drawing-based machining if required |
Inspection Options | UT, MT/PT where applicable, PMI, hardness, mechanical testing, dimensional inspection, and third-party witness |
Documentation | EN 10204 3.1, heat-treatment record, dimensional report, NDT report, marking list, and project-specific dossier |
Typical Applications | Pressure vessel circular parts; Large retaining rings; Reinforced vessel sections; Heavy process equipment |
Commercial Note | Dimensions, heat treatment, machining allowance, and inspection scope can be arranged according to drawing and project specification. |
Key Advantages
Stable Ring Geometry — The forging and rolling route is selected to maintain circularity potential and provide a reliable base for subsequent turning, drilling, or tooth cutting.
Forged Grain Flow — A forged ring structure offers better material continuity than fabricated circular parts and improves confidence in highly loaded service zones.
Machining Efficiency — Stock is distributed where it is needed for OD, ID, and face machining, helping the customer reduce unnecessary material removal.
Heat-Treatment Compatibility — The product is planned for stable response through normalizing, quenching and tempering, or project-specified heat-treatment routes.
Project Flexibility — Material grade, ring section, rough machining, and inspection scope can be arranged according to drawing and end use.
Typical Applications
• Pressure vessel circular parts
• Large retaining rings
• Reinforced vessel sections
• Heavy process equipment
Supply Scope and Inspection
Pressure Vessel Ring Forging can be supplied as a forging blank, heat-treated forging, rough-machined forging, or semi-finished part according to the customer’s process route. Where the project requires closer dimensional control, additional OD/ID/facing, journal, bore, or drilling work can be incorporated before shipment.
For inspection-sensitive orders, Yongxinsheng can coordinate ultrasonic testing, MT/PT where applicable, PMI, hardness checks, mechanical testing, marking, EN 10204 3.1 documentation, and third-party witness arrangements. This makes the product suitable not only for general industrial procurement but also for project-based orders with stricter quality-document requirements.
